Radar

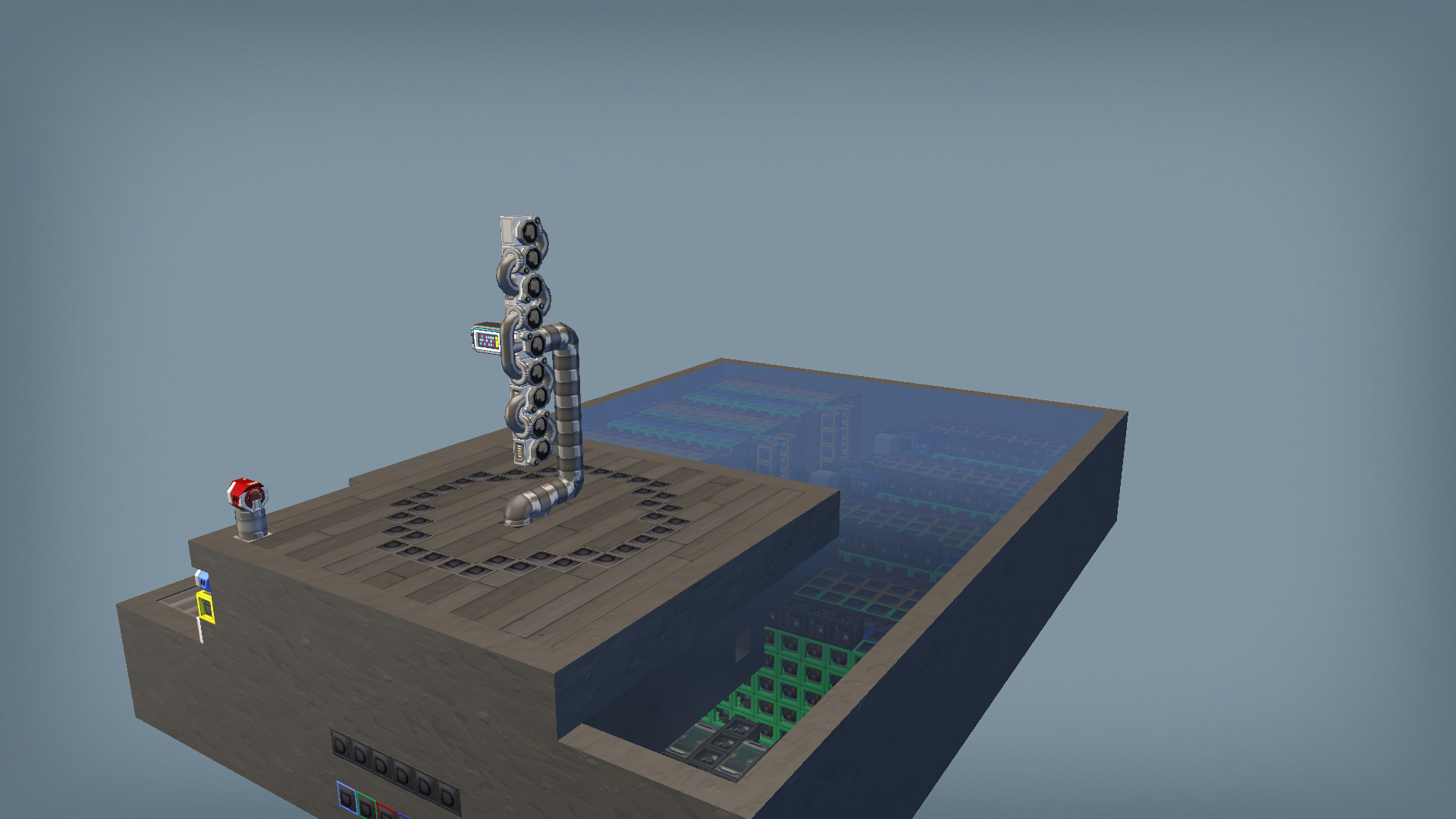

This is a machine that scans the area around it self safes it and then looks around to find new or moved objects.

I will add some futher extra items you can combine with this. message me anytime you have a question or if you want to improve the build

How to use

1. press the red button to clear the whole machine of unwanted data.
2. press the yellow button to scan the area for stationary objects. make sure you remove objects that you are going to move later and make sure you dont walk in front of the sensor while it is moving.
3. once the sensors stopped rotating and the blue lights stop blinking press the green button to start the machine.
4. the green switch is a manual overwrite if you toggle it on it will save the location of the invirorment around itself.
5. purle switch is to toggle the alarm if it detects a new or moved object.
6. red switch stoppes the machine if a new or move object is detected.

the blue light is to indicate if the safe is the same as what the sensors sees.

the 3X3 gray gates are for the sensors of the radar. (can be used to connect to stuff)

yellow gate is the first scan indicator.

On the side of the you can find a few lines of gates.

the bottom black ones are for the sensor array of the radar.

the top 6 black ones are the rotation in binary. (40 angles)

if you want to expend the set here are some feedback and inputs you can add to your own use:

the green is manual overwrite. red is reset. dark blue is a all correct output, can be used for if the machine is in a location where it doesn't detect anything around itself and looks for new objects like a air radar, will give feedback once all the 40 angels are correct with what the sensors sees now. the light blue is a sensors for if the current rotation sensor safe is correct with the current sensor input.
