Bad Apple MV

Overview

Playback of complete Bad Apple!! MV on a 64x48 LED array @ 30FPS. This is a tech demo more than anything, expect significant delay after inserting this assembly in your sub-editor workspace. Expect an even longer delay when you launch into game mode. I really don't recommend adding this assembly into an existing sub/station. I am able to achieve smooth playback on my machine but YMMV depending on your setup

Details

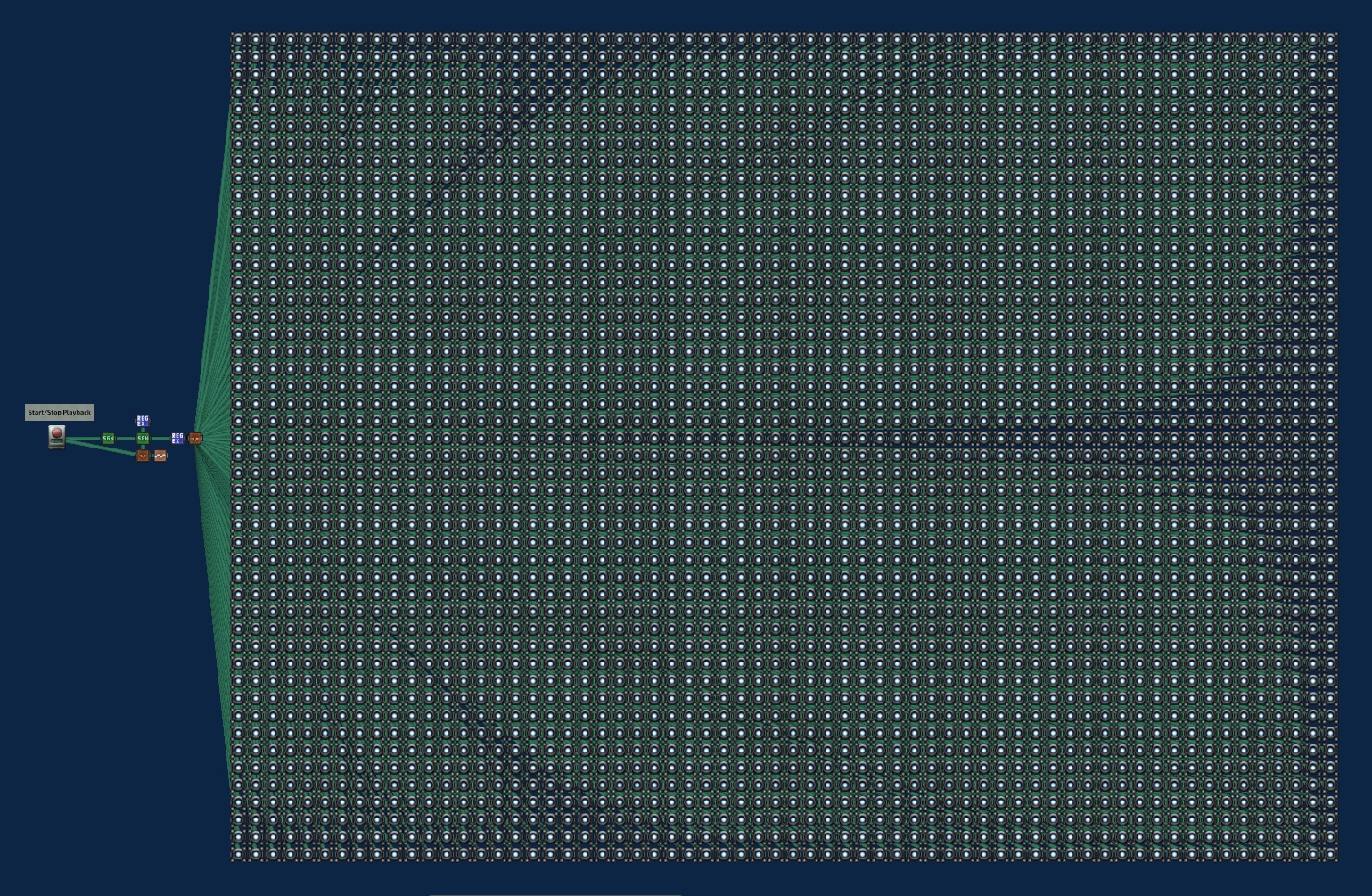

The item assembly was created using custom code. The basic idea is making a circuit which performs the following operations:

• Extract one frame worth of data from the bitmap array

• Feed the data into each pixel block using a relay chain

• Each pixel's associated regex block extracts its relevant bit

• The light state is toggled based on this pixel bit data

Pixel data is compacted in to groups of 4; the bits are mapped to lower nibble of ASCII range "8-?". Staying within the printable character range is important as the mod cannot be imported otherwise (due to XML de-serialization errors).

Sources & References

Bitmap data for playback is available here: https://github.com/muenzuka-code/badapple-64x48-bitmap

Kwogger's ffbaro was used as a reference for the XML template, which I highly recommend checking out: https://github.com/kwogger/ffbaropy
